Wide-angle full cone spray nozzles UZUJP series

Pipe conn. size R1/2, R1 Spray angle 120° or 170° Mean droplet diameter -
Strainer - Standard pressure 0.1 MPa Spray capacity 75–220 L/min
Air consumption - Free passage diameter 4.3–7.3 mm

Features

• Spray covers a large area at a low water pressure.
• Use of a minimal number of nozzles reduces installation cost.
• Compact shape without a built-in whirler.
• Clog-resistant nozzle providing a large spray capacity.

Applications

• Fire extinguishing or watering at coaling towers or conveyor lines in steel mills.
• Cleaning or cooling of exhaust gas in recycling plants or material yards.
• Dust suppression in gas scrubbers, gas cleaning systems, or fuel gas desulfurization facilities.
• Other applications where clogging is a problem.

Industries in which this nozzle is used

• Air pollution control

Product specifications

Material • Nozzle body: SCS16*

*Cast stainless steel equivalent to S316L
Mass
Pipe connection size Mass (g)
R1/2 Approx. 80
R1 Approx. 250

Note: A protective cap (with or without an anti-drop strap) is available as an option.

Outer dimensions

UZUJP (Pipe connection size: R1/2)

No. Components Materials
Nozzle body SCS16*

*Cast stainless steel equivalent to S316L



UZUJP R1/2 with protective cap

No. Components Materials

Nozzle body

SCS16*
Cap PVC (white)

*Cast stainless steel equivalent to S316L



UZUJP R1/2 with protective cap & anti-drop strap

No. Components Materials
Nozzle body SCS16*
Cap PVC (white)
Ring S304**
Strap Acrylic
*Cast stainless steel equivalent to S316L
**Stainless steel 304



UZUJP (Pipe connection size: R1)

No. Components Materials
Nozzle body SCS16*

*Cast stainless steel equivalent to S316L



UZUJP R1 with protective cap

No. Components Materials
Nozzle body SCS16*
Cap PVC (white)

*Cast stainless steel equivalent to S316L



UZUJP R1 with protective cap & anti-drop strap

No. Components Materials
Nozzle body SCS16*
Cap PVC (white)
Ring S304**
Strap Acrylic
*Cast stainless steel equivalent to S316L
**Stainless steel 304



Related products

[Some Models are Made-to-Order] Full cone spray JJXP series nozzles
• Full cone spray pattern with a round impact area and uniform distribution.• Spray capacity ranges…

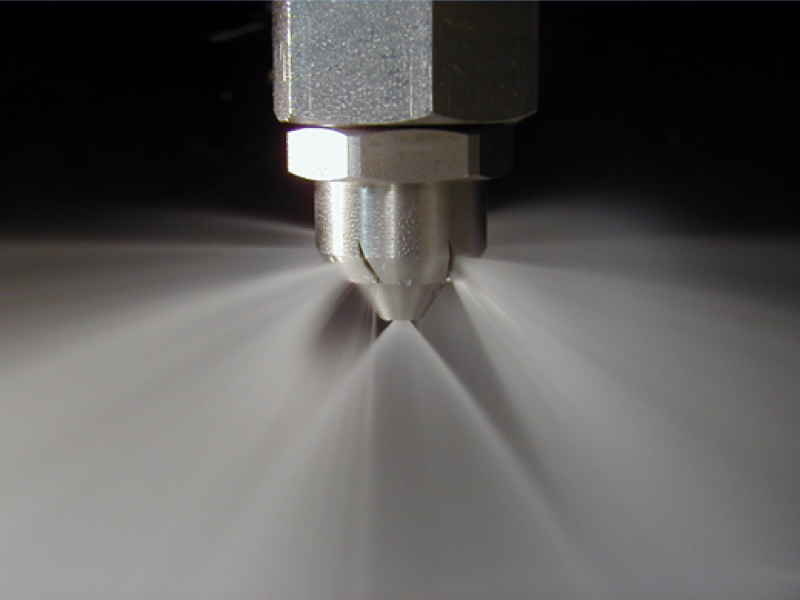

[Made-to-Order] Full cone spray/ Ultra-wide angle TSP series nozzles
