Hollow cone spray/ Large capacity (two-direction spray) TWAA series nozzles

Pipe conn. size 2–4T(Flange size) Spray angle 67–80゚ Mean droplet diameter -
Strainer Not included Standard pressure 0.07 MPa Spray capacity 200–1,200 ℓ/min
Air consumption - Free passage diameter 28–68 mm

Features

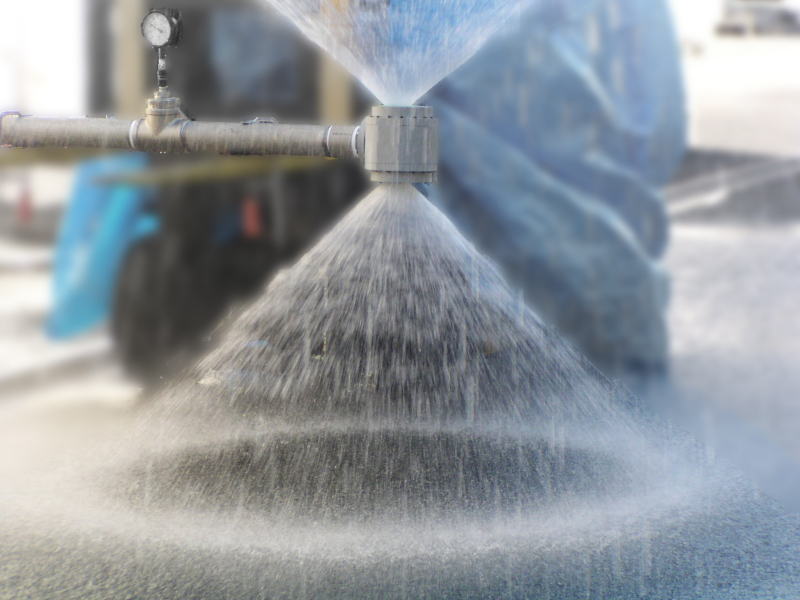

• TAA series nozzles' two-direction (180-degrees opposite direction) jet version.
• Bidirectional hollow cone sprays.
• It helps simplify the equipment or system because the number of nozzles can be reduced to one from two.
• Made of highly wear-resistant SiC (silicon nitride bonded silicon carbide).
• Lightweight as made in all SiC (less than half of metal nozzle).

Applications

• Absorption tower of flue gas desulfurization equipment
Spraying slurry

Industries in which this nozzle is used

• Pollution control

Product specifications

Structure • One-piece cast-molded ceramics.
• Flanged connection.
Material • SiC (silicon nitride bonded silicon carbide)
Mass

-

Outer dimensions

• The above drawing is for 3 inch size TWAA (reference only).
• Appearance and dimensions may differ depending on materials and nozzle codes. Inquire with us for details.
