Full cone spray with mountain-shaped spray distribution/ Quick-detachable INJJX-Y series

Pipe conn. size R1/8, R1/4, or R3/8 Spray angle 65° Mean droplet diameter 290–520 μm
Strainer - Standard pressure 0.2 MPa Spray capacity 1.00–5.00 ℓ/min
Air consumption - Free passage diameter 0.8–2.0 mm

Features

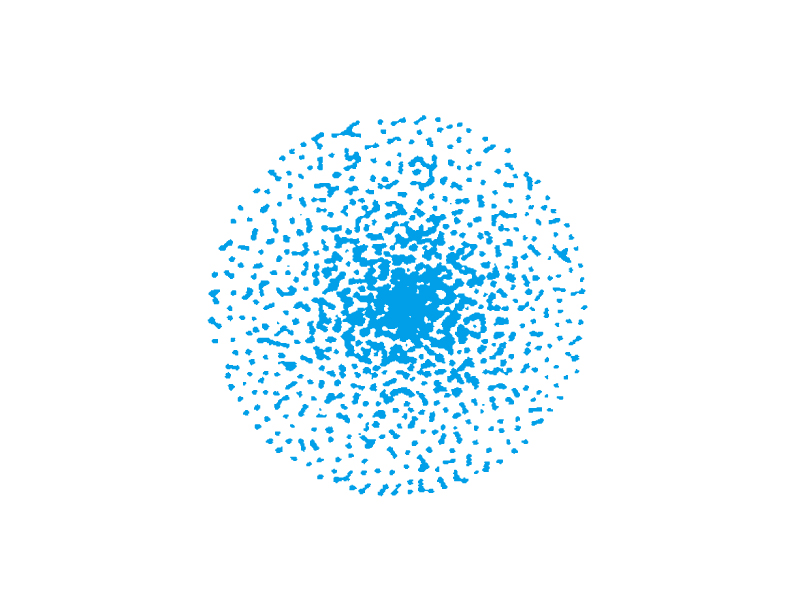

• Full cone spray pattern with high density of spray distribution at its center.
• High impact nozzles providing high etch factor.
• Quick-detachable design helps to significantly reduce maintenance time. Whirler inside a nozzle is removable.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.
• Made of high chemical and heat resistant PP (polypropylene).
• Nozzle tips are color-coded by spray capacity for easy identification.

Applications

• Etching of lead frames
• Etching of printed circuit boards
• Etching of flexible PCBs used for tape-automated bonding (TAB)
• High-precision etching

Industries in which this nozzle is used

• Electronics

Product specifications

Structure • Two-piece structure comprising a nozzle (nozzle tip + whirler + packing) and adaptor.
• Easy installation and removal of a nozzle just by just turning 60゚.
Material • Nozzle tip & Whirler: PP (polypropylene)
• Adaptor: PP or PPS (polypropylene sulfide)
• Packing: FEPM
Mass
Pipe corn size Mass (g)
PP PPS
R1/8 9.2 12
R1/4 9.6 13
R3/8 10.5 14



Outer dimensions

INJJX-Y series

INJJX-Y

Pipe conn. size Outer dimensions (mm)
L1 L2 L3 W1 W2 N
R1/8 10 26.5 37 30 27 8
R1/4 10 29.5 40 30 27 12
R3/8 10 29.5 40 30 27 12



Note: Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
