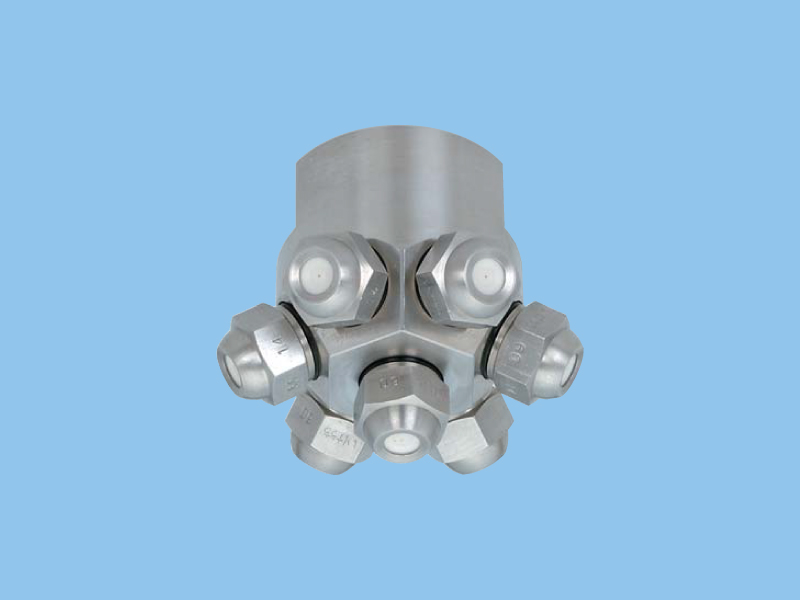

Full cone spray/ Seven-head type (Extremely fine atomization) 7KB series nozzles

Pipe conn. size Rc3/4 Spray angle 180゚ Mean droplet diameter 45–210 μm
Strainer Included or available Standard pressure 0.7 MPa Spray capacity 0.23–10.9 ℓ/min
Air consumption - Free passage diameter 0.15–0.60 mm


• Full cone spray nozzle with an almost round-shaped spray area.
• Produces fine atomization.
• Seven KB hollow cone spray nozzles are installed in a very compact header adaptor.
• KB series nozzles with ceramic whirl chambers and orifices provides excellent wear-resistance.


• Gas cooling
• Cleaning
• Moisture control
• Humidification
• Dust suppression

Industries in which this nozzle is used

• Pollution control

Product specifications

Structure • 7 pcs. of KB series hollow cone spray nozzles (spray angle code 60゚ ) are screwed into a header adaptor.
• Nozzle orifice and closer are made of ceramics.
• Each KB series nozzle has a built-in strainer.
Material • Nozzle orifice & closer: ceramic
• Metal parts: Stainless steel 303
• Optional material: Stainless steel 316
Material Mass(g)
Stainless steel 303 370


Outer dimensions

7KB series

No. Components
KB series nozzle
Header adaptor
O-ring (NBR)

• Please refer to our catalog for the spray dimension (D) shown above.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
