[Some Models are Made-to-Order] Full cone spray/ Wide angle (small to medium flow rate) BBXP series nozzles

Pipe conn. size R1/8, R1/4, R3/8, Rc3/8, Rc1/2, Rc3/4, Rc1, Rc1*1/2, Rc2, Rc2*1/2, Rc3, or Rc4 Spray angle 120゚ Mean droplet diameter 280–1,200 μm
Strainer Not included Standard pressure 0.2 MPa, 0.35 MPa Spray capacity 0.80–1,200 ℓ/min
Air consumption - Free passage diameter 0.5–21.7 mm

Features

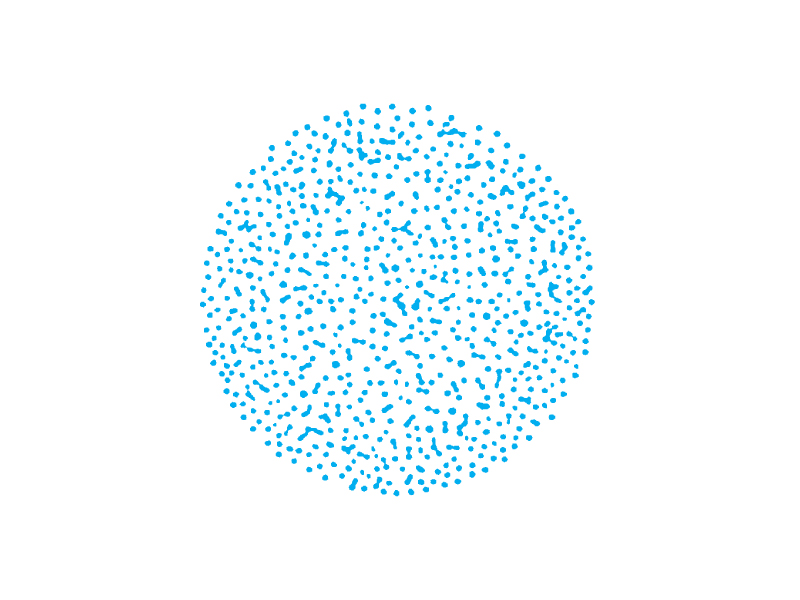

• Full cone spray pattern with a round impact area and uniform distribution.
• Spray angle of 120゚ provides larger spray coverage than other nozzles.
• Spray flow rate ranges from small to medium.
• X-shaped whirler provides large free passage diameter, minimal clogging.

Applications

• Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand
• Cooling: Gas, machineries, tanks, steel plates
• Spraying: Water treatment, aeration, foam breaking, fire extinguishing,
• dust suppression, sea water desalination

Industries in which this nozzle is used

• Steelmaking
• Pollution control

Product specifications

Structure • One-piece structure with press-fit X-shaped whirler.
Material • Sizes R1/8–R3/8 (Rc3/8): Stainless steel 303
• Sizes Rc1/2–Rc1: Stainless steel 303
• Sizes Rc1*1/2 or larger: Stainless steel 316
• Optional material: Stainless steel 316L or others
Mass
Body Pipe conn. size Mass (g)
Stainless steel 303 or 316 PVDF PVC
Metal R1/8 11 - -
R1/4 (015, 020) 20 - -
R1/4 (030) 20 - -
1/4 (040–060) 21 - -
Rc3/8 55 - -
Rc3/8 75 - -
Rc1/2 140 - -
Rc3/4 300 - -
Rc1 585 - -
Rc1*1/2 1,760 - -
Rc2 2,980 - -
Rc2*1/2 5,890 - -
Rc3 9,400 - -
Rc4 16,100 - -
Plastic R1/8 - 2 1.4
R1/4 - 4.1 -

• Figures in ( ) after the pipe connection sizes indicate the spray capacity codes.

Outer dimensions

BBXP series (metal)

• R1/8, R1/4

No. Components
Nozzle body
Whirler
Pipe conn. size Outer dimensions (mm)
L1 L2 H W

φD

N
R1/8 21 - 12 - - 7
R1/4 (015, 020) 21 - 14 - - 10.5
R1/4 (030) 21.5 - 14 - - 10.5
R1/4 (040–060) 29 - 14 - - 10.5

[Note]
• Figures in ( ) after the pipe connection sizes indicate the spray capacity codes.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.



• Rc3/8 and over

No. Components
Nozzle body
Whirler
Pipe conn. size Outer dimensions (mm)
L1 L2 H W

φD

N
Rc3/8 36.5 6 - 17 20 11
Rc1/2 56 8 - 22 25 14
Rc3/4 73 10 - 27 32 15
Rc1 94 14 - 34 40 17
Rc1*1/2 131 20 - 50 58 19
Rc2 168 24 - 60 70 23
Rc2*1/2 199 27 - 80 90 27
Rc3 220 30 - 90 105 30
Rc4 278 40 - 115 130 36

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.



• R3/8

No. Components
Nozzle body
Whirler
Pipe conn. size Dimensions (mm)
L1 L2 H W

φD

N
R3/8 36.5 6 - 17 20 11

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.

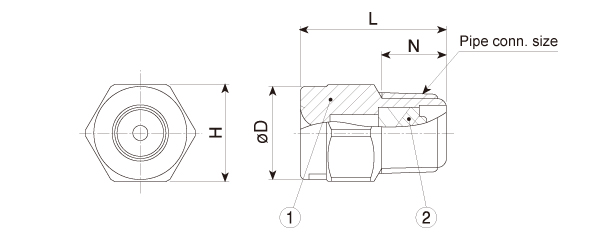

BBXP-PVDF series

No. Components
Nozzle body (PVDF)
Whirler (PVDF)
Pipe conn. size Dimensions (mm)
L H φD N
R1/8 18 12 11 8
R1/4 22 14 12 11.5

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.



BBXP-PVC series

No. Components
Nozzle body (PVC)
Whirler (PVC)

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
