Full cone spray/ Low flow rate (Disassemblable) J series nozzles

Pipe conn. size R1/4 Spray angle 70゚ Mean droplet diameter 130–440 μm
Strainer Included or available Standard pressure 0.2 MPa, 0.5 MPa Spray capacity 0.09–1.40 ℓ/min
Air consumption - Free passage diameter 0.2–0.9 mm

Features

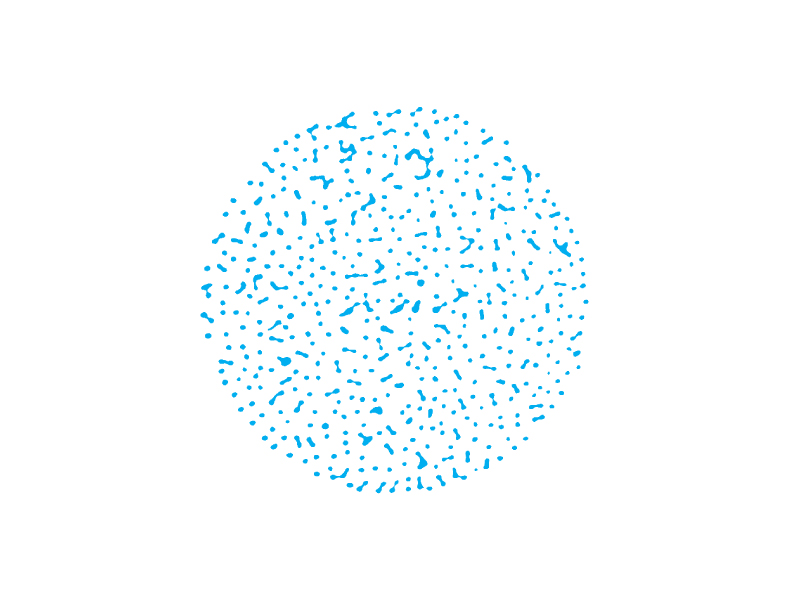

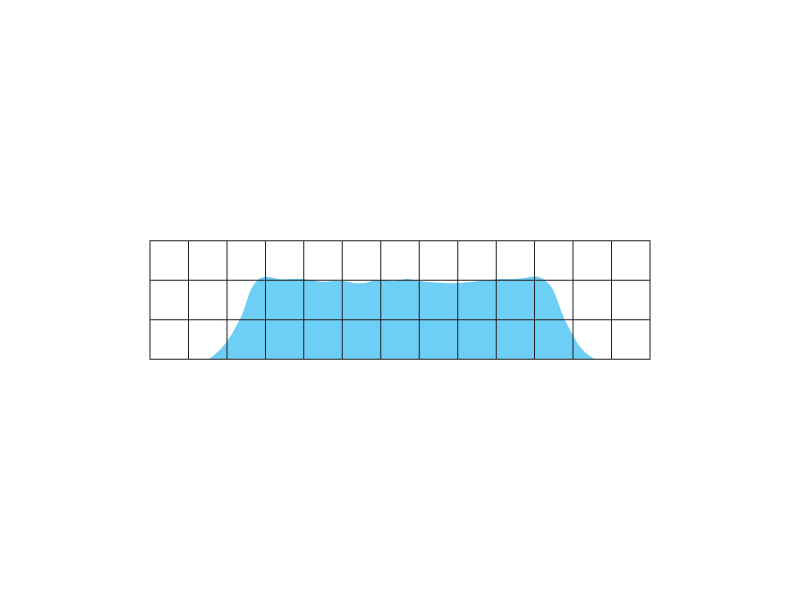

• Full cone spray pattern with a round impact area and uniform distribution.
• Features lowest flow rate among our full cone spray nozzles.
• Ceramic orifice and closer provide excellent wear-resistance.

Applications

• Spraying: Oils, lubricants, glues, etchants
• Cleaning: Galvanizing, gas
• Cooling: Machinery, gas

Industries in which this nozzle is used

• Pollution control
• Electronics
• Food

Product specifications

Structure • Nozzle orifice and closer are made of ceramics.
• All models include built-in strainers.
Material • Nozzle orifice & closer: ceramic
• Nozzle body: S303
• Optional material: Stainless steel 316
Mass
Material Mass(g)
Stainless steel 303 17.5



Outer dimensions

JJXP series

No. Components
Ceramic orifice
Ceramic closer
Packing (PTFE)
Nozzle body
Spring (S316)
Strainer (S303+S304)

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.
