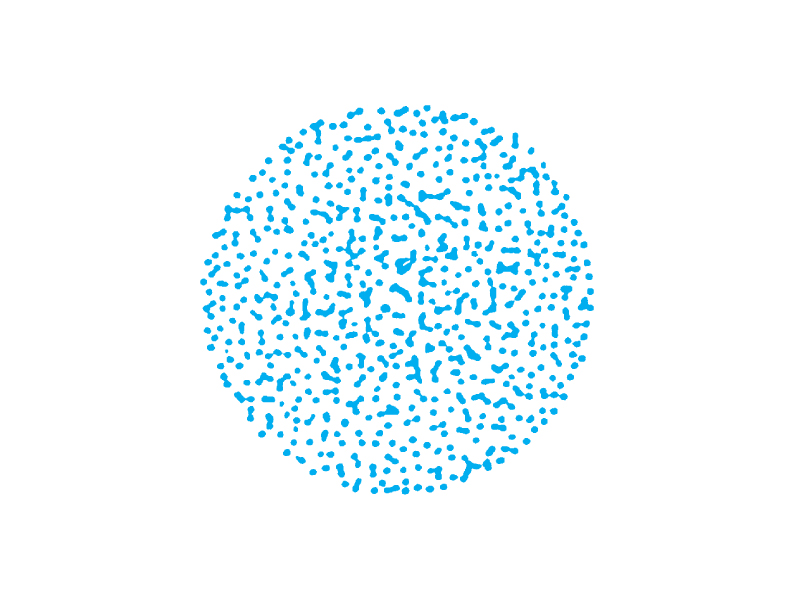

[Made-to-Order] Full cone spray/ Clog-resistant JUXP-AL92 series nozzles

Pipe conn. size R1, R1*1/2, R2, R2*1/2, or R3 Spray angle 75゚, 80゚, 85゚, 90゚, 95゚, or 100゚ Mean droplet diameter 630–1,800 μm
Strainer Not included Standard pressure 0.2 MPa Spray capacity 23.0–700 ℓ/min
Air consumption - Free passage diameter 4.7–17.0 mm

Features

• X-shaped whirler provides large free passage diameter, minimizing clogging.
• Made of high-purity alumina ceramic, offering excellent wear resistance.
• Spray capacity ranges from medium to large.

Applications

• Absorption tower of flue gas desulfurization equipment.
Spraying slurry

Industries in which this nozzle is used

• Pollution control

Product specifications

Structure • Whole nozzle fired as one piece.
Material • Nozzle body: 92% Alumina
• Socket: S316
Mass
Thread sizes Mass(g)
Nozzle Socket
R1 Rc3/4 310
R1 Rc1 510
R1*1/2 Rc1 910
R1*1/2 Rc1*1/2 1,190
R2 Rc1*1/2 1,440
R2 Rc2 1,860
R2*1/2 (250–350) Rc2 2,920
R2*1/2 (400–550) Rc2 2,530
R2*1/2 (250–350) Rc2*1/2 3,520
R2*1/2 (400–550) Rc2*1/2 3,130
Rc3 Rc2*1/2 3,190
Rc3 Rc3 3,890

• Figures in ( ) after the nozzle thread sizes indicate the spray capacity codes.

Outer dimensions

JUXP-AL92 series

No. Components
Nozzle body
Ceramic whirler
Adhesive: Araldite®H
Socket (S316)

• We offer JUXP-AL92 series with a socket made of S316 to prevent thread damage, as the nozzle's alumina threads get easily chipped. Our S316 socket is female threaded.

• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.

Thread sizes Dimensions (mm)
Nozzle Socket L1 L2 L3 W φD1 φD2 N
R1 Rc3/4 74 41 18 41 50 35 15
R1 Rc1 76 43 18 41 50 35 17
R1*1/2 Rc1 91 47 24 60 70 50 17
R1*1/2 Rc1*1/2 94 50 24 60 70 50 19
R2 Rc1*1/2 127 54 27 70 80 65 19
R2 Rc2 131 58 27 70 80 65 23
R2*1/2 (250–350) Rc2 167 62 30 90 100 80 23
R2*1/2 (400–550) Rc2 125 62 30 90 100 80 23
R2*1/2 (250–350) Rc2*1/2 171 66 30 90 100 80 27
R2*1/2 (400–550) Rc2*1/2 129 66 30 90 100 80 27
Rc3 Rc2*1/2 156 71 35 100 110 90 27
Rc3 Rc3 160 75 35 100 110 90 30

[Note]
• Figures in ( ) after the nozzle thread sizes indicate the spray capacity codes.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
