Flat spray with mountain-shaped spray distribution (Quick-detachable) INV series nozzles

Pipe conn. size R1/4 Spray angle 50゚, 65゚, 80゚, or 90゚ Mean droplet diameter 280–640 μm
Strainer Not included Standard pressure 0.3 MPa Spray capacity 2.0–8.0 ℓ/min
Air consumption - Free passage diameter 1.0–2.0 mm

Features

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.

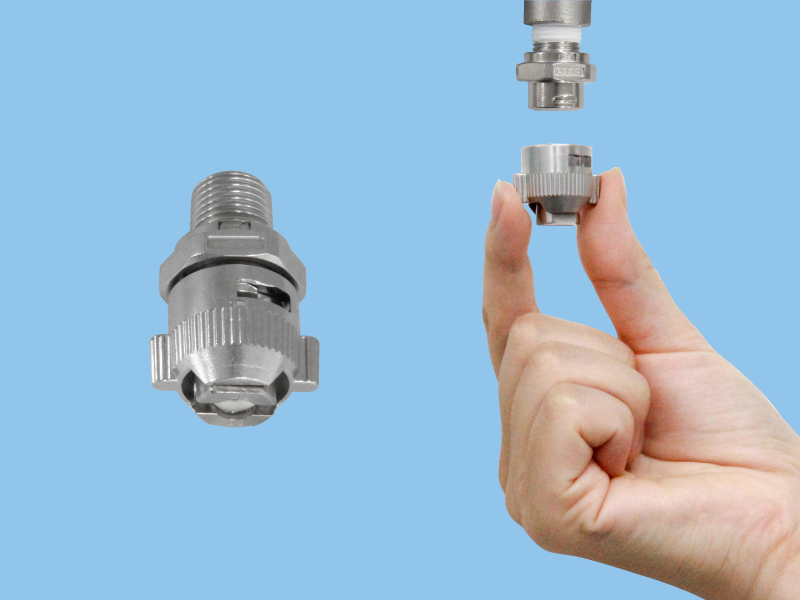

• Quick-detachable design helps to greatly reduce maintenance time.
• Easy mounting/dismounting with a knurled tab.
• No falling off of tip or packing when removing the nozzle part.
• Nozzle body and adaptor are made of stainless steel which provides high heat resistance and durability.
• Nozzle orifice is made of high wear resistant ceramic.

Applications

• Cleaning: Automotives, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
• Spraying: Oils, lubricants, glues, insecticides, herbicides
• Cooling: Tanks, roofs
• Water screen: Dust suppression, deodorization
For the applications where precise spray alignment and/or periodic maintenance is required

Industries in which this nozzle is used

• Steelmaking
• Pollution control
• Machinery
• Electronics
• Paper & Pulp
• Printing
• Food
• Agriculture
• Fisheries & Livestock
• Automotives

Product specifications

Structure • Features a ceramic orifice in the nozzle tip.
• Two-piece structure comprising a nozzle (nozzle tip + cap + packing) and adaptor.
• Easy installation and removal of a nozzle just by turning 90゚.

Material • Nozzle orifice: Ceramic
• Adhesive: Araldite®
• Tip retainer: Stainless steel 303
• Cap: Stainless steel 316L equivalent
• Packing: FEPM
• Adaptor: Stainless steel 316L equivalent
Mass
Pipe conn. size Mass (g)
R1/4 51



Outer dimensions

INV series

No. Components
Ceramic orifice
Adhesive: Araldite®
Tip retainer
Cap
Packing
Adaptor

[Note]
• Appearance and dimensions may differ depending on materials and nozzle codes. Contact us for details.
