Flat spray/ Air mixing type EJVV series nozzles

Pipe conn. size R1/4 Spray angle 80–90゚ Mean droplet diameter 320–590 μm
Strainer Not included Standard pressure 0.3 MPa Spray capacity 2.00–12.0 ℓ/min
Air consumption - Free passage diameter 0.9–2.6 mm

Features

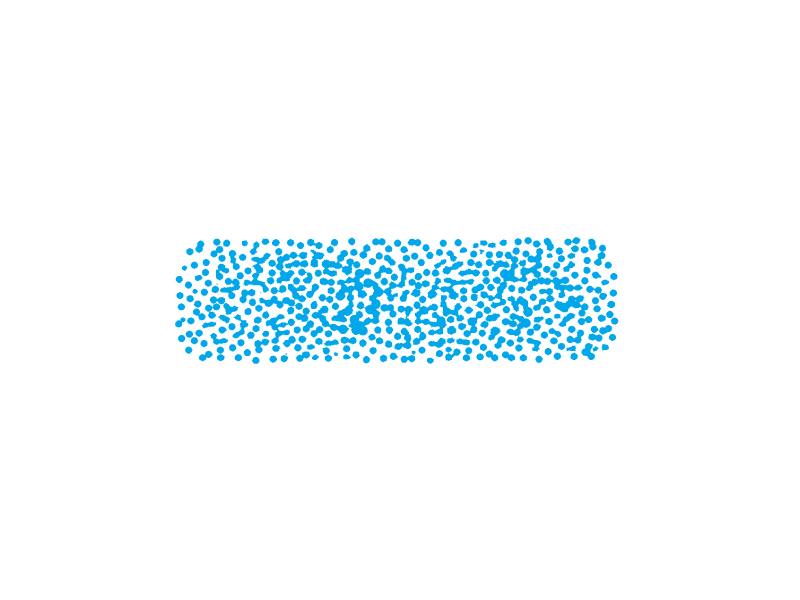

• EJVV has wider depth in spray pattern compared with standard flat spray nozzles, and the ratio of width and depth is (3-4):1.
• The free passage diameter and mean droplet diameter are slightly larger than those of a standard flat spray nozzle.
• Tapered edges overlap to provide uniformity of spray distribution in multiple-nozzle arrangements.

Applications

• Cooling: Steel plates
• Cleaning: Water rinsing after acid cleaning of metal sheets, water rinsing before or after painting

Industries in which this nozzle is used

• Steelmaking

Product specifications

Structure • Comprises three parts: Nozzle tip, cap, and adaptor.
Material • Metal parts: Stainless steel 303
• Optional material: Stainless steel 316 or others
Mass

57 g

Outer dimensions

• Appearance and dimensions may differ depending on materials and nozzle codes. Inquire with us for details.
