Descaling nozzle(high-pressure cleaning) DSP series nozzles

Pipe conn. size R1/8, Rc3/8 Spray angle 12゚, 15゚ Mean droplet diameter -
Strainer Available for some nozzle codes Standard pressure 5 MPa Spray capacity 5.59–86.5 ℓ/min
Air consumption - Free passage diameter 0.4–2.6 mm

Features

• Flat spray nozzle engineered especially for outstanding powerful cleaning and descaling.
• Producing a thin, sharp razor-like flat spray pattern with high spray impact and even spray distribution.
• Features most powerful cleaning effects among our flat spray nozzles (under the same spray pressure and spray capacity conditions).

Applications

• High pressure cleaning
• descaling
• rust-removal
• degreasing

Industries in which this nozzle is used

• Steelmaking
• Electronics
• Food

Product specifications

Structure • Ceramic orifice inserted and adhered into metal body.
• Opening of ceramic orifice is circular from inlet to throat and it gradually contracts to a longer rectangle towards the outlet.
Material • Nozzle orifice: ceramic
• Metal parts: Stainless steel 303
Mass
Pipe conn. size Mass(g)
R1/8 7
Rc3/8 52

• When with a strainer, add 2–5 g to the above mass.

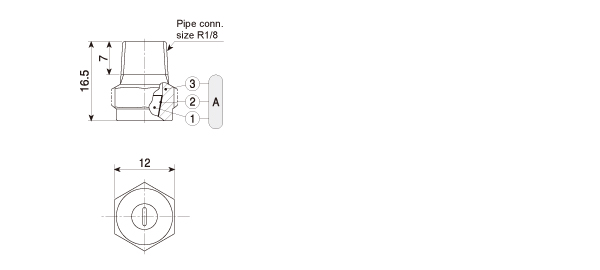

Outer dimensions

DSP series

• R1/8

No. Components
A-① Ceramic orifice
A- Adhesive: Araldite®
A- Nozzle body

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes.



• R1/8

No. Components
A-① Ceramic orifice
A- Adhesive: Araldite®
A- Nozzle body
B-④ Packing (PTFE)
B-⑤ O-ring (NBR)
B-⑥ Strainer screen [S316]
B-⑦ Strainer holder
B-⑧ Strainer cap

[Note]
• Appearance and dimensions may differ slightly depending on materials and nozzle codes.

• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.
