Flat spray with mountain-shaped spray distribution(Standard type) VVP series nozzles

Pipe conn. size R1/8, R1/4, R3/8, R1/2, R3/4, or R1 Spray angle 15゚, 25゚, 40゚, 50゚, 65゚, 80゚, 90゚, or 115゚ Mean droplet diameter 150–1,100 μm
Strainer Available for some nozzle codes Standard pressure 0.3 MPa Spray capacity 0.20–150 ℓ/min
Air consumption - Free passage diameter 0.2–10.3 mm

Features

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Tapered edges overlap to provide uniformity of spray distribution in multiple-nozzle arrangements.

Applications

• Cleaning: Automotives, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
• Spraying: Etchants, oils, lubricants, glues, solutions, insecticides, herbicides
• Cooling: Gas, smokes, heat exchangers, tanks, steels, roofs
• Water screen: Fire protection, heat protection, dust suppression, deodorization

Industries in which this nozzle is used

• Steelmaking
• Pollution control
• Machinery
• Electronics
• Paper & Pulp
• Printing
• Food
• Agriculture
• Fisheries & Livestock
• Automotives

Product specifications

Structure • Made of metal or plastic.
• Simple one-piece structure to be screwed into pipe.
• Small spray capacity models of metal VVP come with or without a strainer.
Material • Stainless steel 303 or PP (injection-molded polypropylene)
• Stainless steel 316L equivalent (precision-molded stainless steel)
• Strainer for precision-molded stainless steel: Stainless steel 303 or 316
• Optional material: Stainless steel 316, PVC, PVDF, Ultrahigh molecular weight polyethylene or others
Mass
Series Pipe conn. size Mass(g)

Stainless steel

303

Stainless steel

316L equivalent

PP
VVP*1 R1/8 10 - -
R1/4 21 - -
R3/8 37 - -
R1/2 65 - -
R3/4 110 - -
R1 170 - -
VVP
(Precision-molded stainless steel)
R1/8 - 9.6 -
R1/4 - 16 -
VVP
(Injection-molded)
R1/8 - - 1.1
R1/4 - - 2

• When with a strainer, add 2–5 g to the above mass.

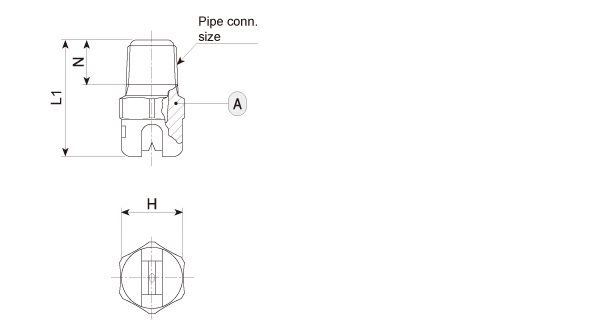

Outer dimensions

VVP series

No. Components
A Nozzle
B-① Strainer holder
B-② Strainer screen [S316]
B-③ Strainer cap
Pipe conn. size Outer dimensions(mm)
L1 L2 H φD N
R1/8 18.5 31 12 7.5 6.5
R1/4 25 40 14 10 10.5
R3/8 30 - 19 - 10.5
R1/2 38 - 23 - 14
R3/4 45 - 29 - 15
R1 55 - 35 - 18

[Note]
• Appearance and dimensions may differ depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.



PP Injection molded VVP series

No. Components
A Nozzle
B-① Strainer holder
B-② Strainer screen [S316]
B-③ Strainer cap
Pipe conn. size Outer dimensions(mm)
L1 L2 H φD N
R1/8 22 - 12 - 8.5
R1/4 27 - 14 - 11.5

[Note]
• Appearance and dimensions may differ depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.

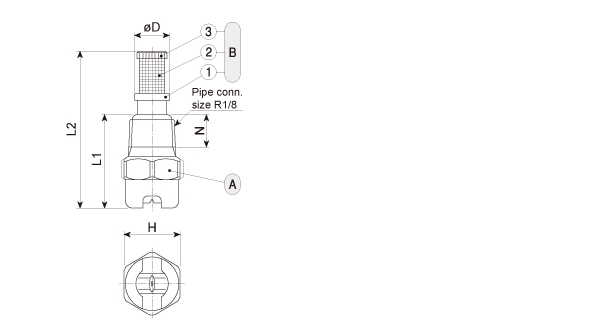

Precision-molded stainless steel VVP series

• R1/8

No. Components
A Nozzle
B-① Strainer holder
B-② Strainer screen [S316]
B-③ Strainer cap
Pipe conn. size Outer dimensions(mm)
L1 L2 H φD N
R1/8 20 33.5 12 7.5 7

[Note]
• Appearance and dimensions may differ depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.



• R1/4

No. Components
A Nozzle
B-① Strainer holder
B-② Strainer screen [S316]
B-③ Strainer cap
Pipe conn. size Outer dimensions(mm)
L1 L2 H φD N
R1/4 27 41 14 10 10.5

[Note]
• Appearance and dimensions may differ depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel".  (Example) S316 represents stainlees steel 316.
